Fiduciary Markers for Photogrammetry

Fiduciary Markets from DESS are the ultimate solution for aligning implant scans with soft tissue scans - and an excellent tool when using photogrammetry. When a fiducial marker is placed, it acts as a reliable reference point and enables perfect synchronization between the two scans.

By combining implant scanning and soft tissue scanning, the clinician can precisely align the data and achieve an optimal implant and gingival configuration - particularly valuable in whole-jaw rehabilitations for edentulous patients.

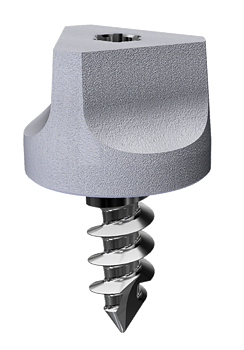

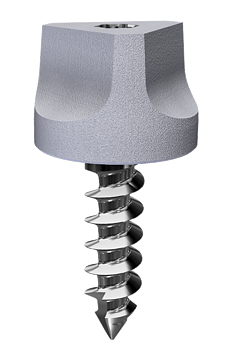

Fiducial markers are self-tapping screws that can be applied in both the maxilla and mandible, either anteriorly or posteriorly, using a standard Unigrip® chisel on a contra-angle handpiece.

Features Fiduciary Markers:

- Made of titanium, Grade V
- Available in two lengths: 6 mm and 8 mm
- Scanning optimized design:
- Sharp edge
- Non-reflective surface
- Selectgrip® technology for perfect scanning results

Dimensions:
- Head diameter: Ø5.9 mm
- Head height: 4.25 mm
- Thread: M2.2 mm
- Pack of 2 or 4 pieces
- Length: 6 or 8 mm
